eBike & eScooter Charger Guide: Matching Voltage, Amps and Connector Pins (Why 48V Packs Need a 54.6V Charger)
A 48V eBike or eScooter battery pack needs a charger rated around 54.6V, not 48V, because the charger's job is to reach the pack's fully-charged peak voltage, which sits higher than the pack's nominal voltage. This confuses a lot of riders who assume charger and battery voltage should match exactly. This guide explains why 48V packs use a 54.6V charger, how to check amps and connector pins before buying, and what happens if you get any of these wrong.
Why does a 48V eBike battery need a 54.6V charger?
Nominal voltage (48V) describes the pack's average voltage across a full discharge cycle, but the actual peak voltage when the battery is 100% charged is higher — for a standard 13-cell lithium-ion series configuration, that peak lands around 54.6V. The charger is built to deliver this peak voltage and then taper off, so a 48V-labelled charger would actually undercharge the pack and leave you with reduced range.

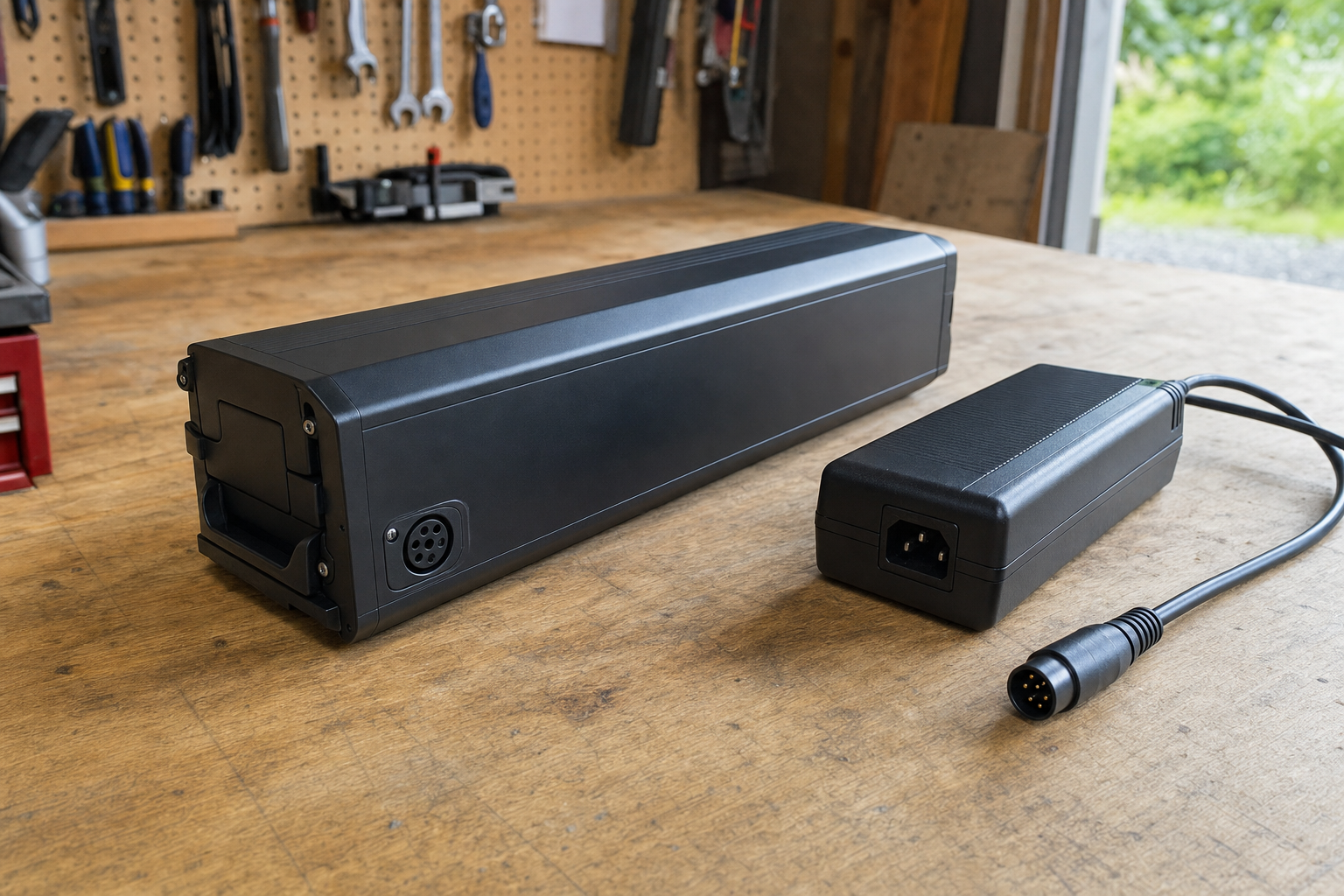

This is standard across the lithium-ion battery industry, not a BatteryMate-specific quirk — a 36V pack typically pairs with a 42V charger, and a 52V pack pairs with a 58.8V charger, following the same logic. Our 5-pin 54.6V 2A eBike/eScooter charger is built specifically for 48V lithium packs using this voltage relationship.
https://cdn.shopify.com/s/files/1/0419/0221/1226/files/batterymate-blog-post08-img2.png?v=1783810302What amp rating should I choose for my eBike charger?
Amps determine charging speed, not compatibility — a 2A charger will safely charge a 48V pack, just more slowly than a 4A or 5A charger designed for the same voltage. Using a lower-amp charger than the battery's maximum rated input is safe; using a charger with a significantly higher amp rating than the battery management system supports can cause excess heat during charging.
For most home charging overnight, a 2A charger is a practical, safe choice that avoids stressing the cells with fast charging on a daily basis. If you need faster turnaround for daily commuting, check your battery pack's specification sheet for its maximum accepted charging current before stepping up to a higher-amp charger.
How do I match the connector pins on my eBike charger?
eBike and eScooter battery packs commonly use a 3-pin, 4-pin, or 5-pin round connector (often GX16 or similar barrel-style connectors), and using the wrong pin count means the charger simply won't plug in — there's no risk of forcing an incompatible connection because the physical shape won't match. Always check the connector on your existing charger or the port on your battery pack before ordering a replacement.
The 5-pin configuration is common on many 48V packs sold in Australia, where the extra pins typically carry communication or temperature-sensing signals alongside the charging current.
eBike/eScooter charger voltage matching table
| Battery nominal voltage | Required charger voltage | Typical cell configuration | Common connector |
|---|---|---|---|
| 24V | 29.4V | 7-series li-ion | 3-pin or 5-pin |
| 36V | 42V | 10-series li-ion | 3-pin or 5-pin |
| 48V | 54.6V | 13-series li-ion | 5-pin |
| 52V | 58.8V | 14-series li-ion | 5-pin |
| 60V | 67.2V | 16-series li-ion | 5-pin |
What happens if I use the wrong charger on my eBike battery?
A charger with a lower voltage than the pack requires will fail to reach a full charge, leaving you with reduced range and a battery that never shows 100%. A charger with a significantly higher voltage than the pack requires can overcharge the cells, creating a genuine safety risk including excess heat and accelerated battery degradation, so voltage matching is not something to guess on.
If your original charger is lost, cross-check the voltage printed on your battery pack's label against the charger's output rating rather than assuming based on the eBike's advertised system voltage alone, since some manufacturers round the nominal figure differently.
How should I store and care for a 48V eBike battery over an Australian summer or winter?
Heat is the bigger long-term risk for most Australian riders, since a garage or shed can reach extreme temperatures in summer, and lithium-ion packs age faster when stored hot or charged immediately after a ride while still warm from use. Letting the pack cool to room temperature before plugging in the charger, and storing it out of direct sun rather than on a sun-facing balcony or car boot, both help preserve capacity over the pack's lifetime.
Over winter, or during any period where the eBike won't be ridden for several weeks, store the pack at a partial charge rather than fully charged or fully flat — most riders aim for roughly half charge for long-term storage, then top it up before the next ride. Checking on a stored battery every month or so and topping up if it's drifted very low is a simple habit that avoids the pack sitting at a damaging deep discharge for weeks on end.
Where can I buy a compatible charger and other eBike accessories in Australia?
If you're replacing a lost or failed charger, our 5-pin 54.6V 2A charger is a straightforward like-for-like option for most 48V packs using this connector style, and pairing it with genuine-spec cells elsewhere in your setup — for example 18650 rechargeable cells for torches or accessories you carry while riding — is a sensible way to keep your whole setup reliable rather than just the main pack. If you also run other cordless gear day to day, our Tradies Battery collection covers compatible packs for tools that see similarly heavy use.
https://cdn.shopify.com/s/files/1/0419/0221/1226/files/batterymate-blog-post08-img3.png?v=1783810310Frequently asked questions
Can I use a 54.6V charger on a 36V battery?
No. A 54.6V charger is designed for 48V packs and will overcharge a 36V pack, which typically requires a 42V charger. Always match the charger to your specific pack's nominal voltage, not the other way around.
Why does my eBike charger's light stay red even after hours of charging?
This usually indicates the charger hasn't reached the battery's target voltage, which can happen with a mismatched charger, a partially faulty battery management system, or simply a very depleted pack that needs longer than expected. If the light never turns green after several hours, check the charger's voltage rating against your battery's label.
Is a higher amp charger always better for my eBike battery?
Not necessarily — higher amp chargers charge faster but generate more heat, and repeatedly fast-charging a lithium-ion pack can accelerate long-term capacity loss compared to a lower-amp overnight charge. Match the amp rating to your battery's maximum accepted charging current rather than choosing the highest amp charger available.
How do I know if my eBike battery is 48V without opening it?
Check the label on the battery pack itself, which should state the nominal voltage, or check your eBike's original specification sheet or manual. If no label is visible, the original charger's output voltage (minus the standard step-up, e.g. 54.6V points to a 48V pack) is a reliable clue.
